Directions:
Included Parts:
Wall Mount Arm
Screw Cover (optional symbol cover)
Ball Joint/Custom Ball Joint
Optional: Wall Screws and Anchors
Step 1: Mount the Arm to the Wall
Step 1: Mount the Arm to the Wall
Position the wall mount arm at the desired location on the wall.
If desired, use the included screws and anchors for secure attachment. (Anchors are recommended for drywall or other less stable surfaces.)
Ensure the arm is level and securely fastened to the wall.
Step 2: Attach the Screw Cover
Step 2: Attach the Screw Cover
Slide the optional screw cover over the mounted arm to conceal the screws for a polished look.
Adjust as needed to align the cover with the arm.
Step 3: Install the Ball Joint
Step 3: Install the Ball Joint
Position the ball joint at the end of the arm.
Secure the ball joint, allowing it to rotate and tilt for dynamic display.
Adjust the ball joint to the preferred angle to showcase your set and tighten.
Your mount is now installed and ready for display!
What makes the Heavy Duty Mount, "Heavy Duty"?
What makes the Heavy Duty Mount, "Heavy Duty"?
The Heavy Duty Mount (HD) is printed in two halves laying down, then glued together in post processing. The standard Universal Wall Mounts (UWM) are printed standing up, pointing up.

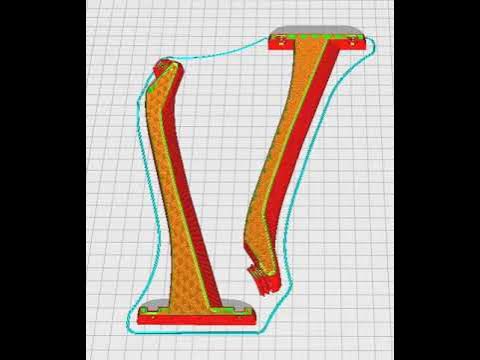

Heavy Duty Mount
Heavy Duty Mount
Printing in two halves like this spread's the 3d printed layers across the length of the whole arm making it much stronger and able to support more weight. This process requires a larger print area and reduces the number of mounts that can be printed simultaneously.

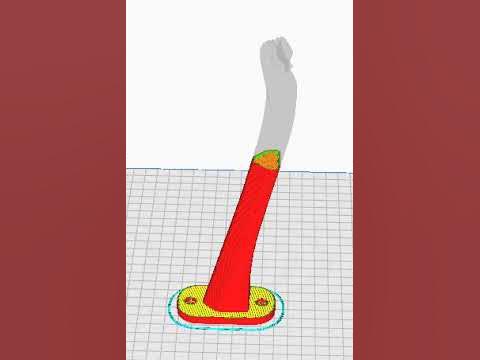

Universal Wall Mount
Universal Wall Mount
Printing standing up offers standard rigidity and can support smaller/lighter sets. More UWM's can be printed at once and are not required to be glued together in post processing. Click the video below to see how its made!
Have a question? Have a problem? Please reach out!
[support@bp3dprintshop.com] [ 509 - 866 - 6195 ]
These installation instructions are compatible with the sets listed below, as well as many others.
These installation instructions are compatible with the sets listed below, as well as many others.
Adjustable Wall Display Stand/Mount for LEGO® TIE Fighter™ (75095)
Adjustable Wall Mount for LEGO® Ahsoka Tano's T-6 Jedi Shuttle
Adjustable Wall Mount for LEGO® VTOL Heavy Cargo Spaceship LT81 (42181)
Wall Mount for LEGO® NASA Hubble Space Telescope (10283)
Wall Mount for LEGO® NASA Space Shuttle Discovery (10283)
Adjustable Wall Mount for LEGO® Concorde (10318)
Universal Adjustable Wall Mount for LEGO® Star Wars Ships
Adjustable Wall Mount for LEGO® UCS X-Wing Starfighter™ (75355)
Wall Mount for LEGO® NASA Mars Rover Perseverance (42158)
Adjustable Wall Mount for LEGO® UCS Tie Interceptor™ (75382)
